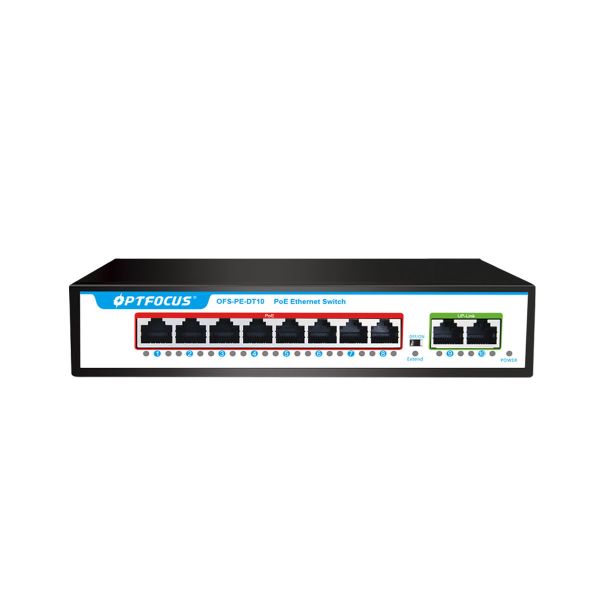

OEM ODM factory sales POE network switch 8*10/100mbps POE port,2*10/100mbps UP-Link port
for NVR ISP FTTH CCTV IP camera
Features
The PoE switch provides power and data from a single
point, using Power over Ethernet (PoE) over a single Cat-5
cable. It can be used for any 10/100Mbps link and supply
industry-standard IEEE 802.3af/at power. Advancedauto-sensing
algorithm gives power to 802.3af/at end devices,
In addition, the PoE switch automatically determines PoE
requirements, speed, duplex, and cable type using Auto
Uplink. Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as
IP cameras, WLAN access point, IP phones, office access
control systems, and other PD devices and offers a line of high
quality products that provide a total solution for Ethernet
application in different environments
8*10/100mbps POE port,2*10/100mbps UP-Link port
100m Transmission Distance,250m after use extend function
Compatible with IEEE802.3AF/AT
The specification of the built-in power supply: 120W(52V 2.3A)
All port supported by MDI/MDIX auto flip and self negotiation
Supply 8pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port
Add high level lightning protection device, up to 6000V
Each port max. power supply reached 30W
Low heat design, safe and reliable, high stability
Application:² Wireless Access Point² IP Camera
² IP Phone² Computer Networks
| Model | OFS-PE-DT10 |
| Connector | 8*10/100mbps POE port,2*10/100mbps UP-Link port |
| Power Supply Type | Build in , 1/2+,3/6- |
| PoE Output Power | 15.4W/30W |
| DATA PIN | 1/2+,3/6- |
| Network Medium | Cat5 (UTP) or more |
| Network Standards | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
| PoE power | Wiring: Data & power provided over pairs 1/2 and 3/6 |
| Processing types | Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
| Address database Table Size | 1K MAC address |
| Buffer memory | 48Kb embedded memory per unit |
| Backboard Bandwidth | 2G |
